Trace 30

Matte Sand / Black

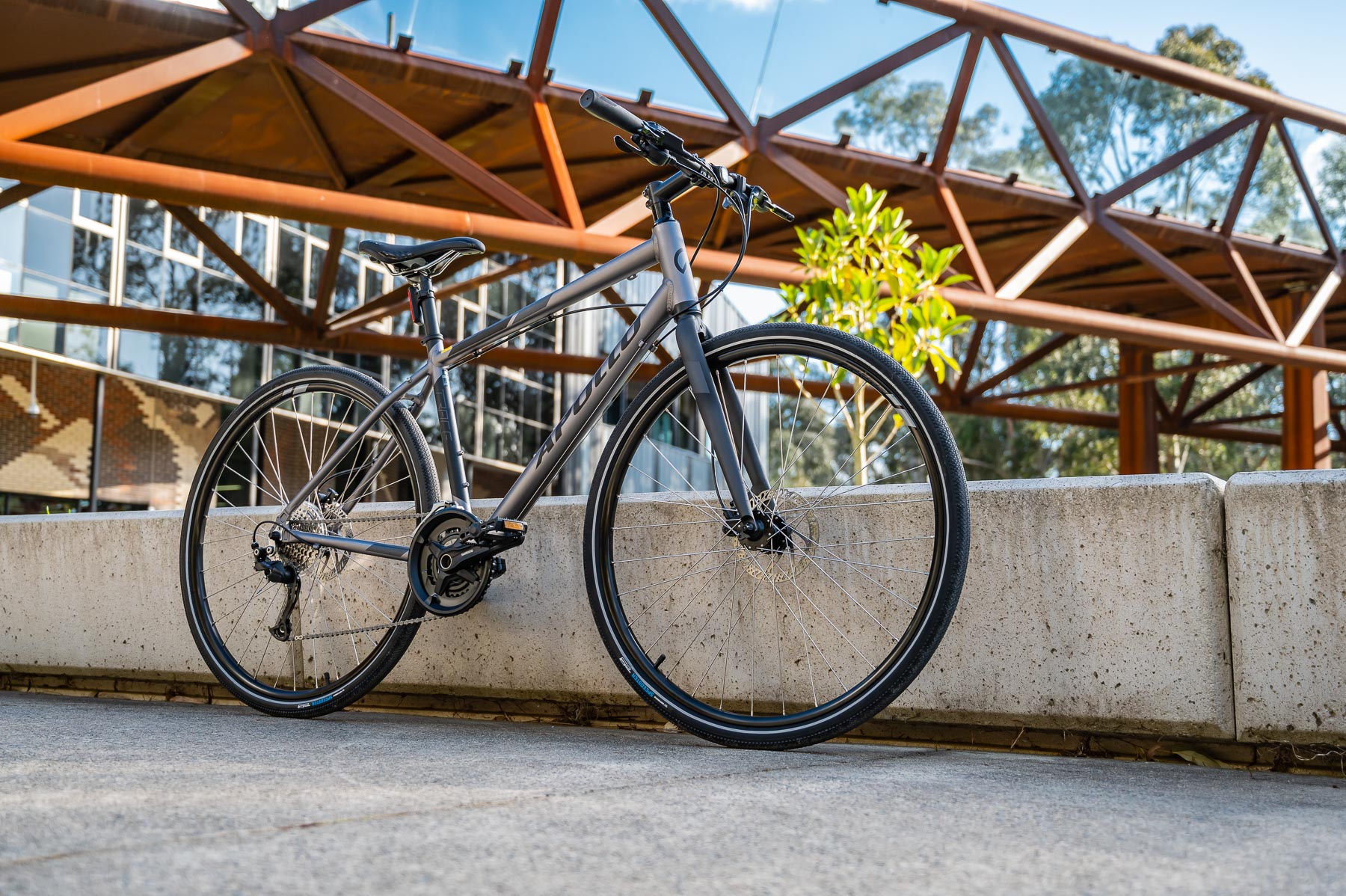

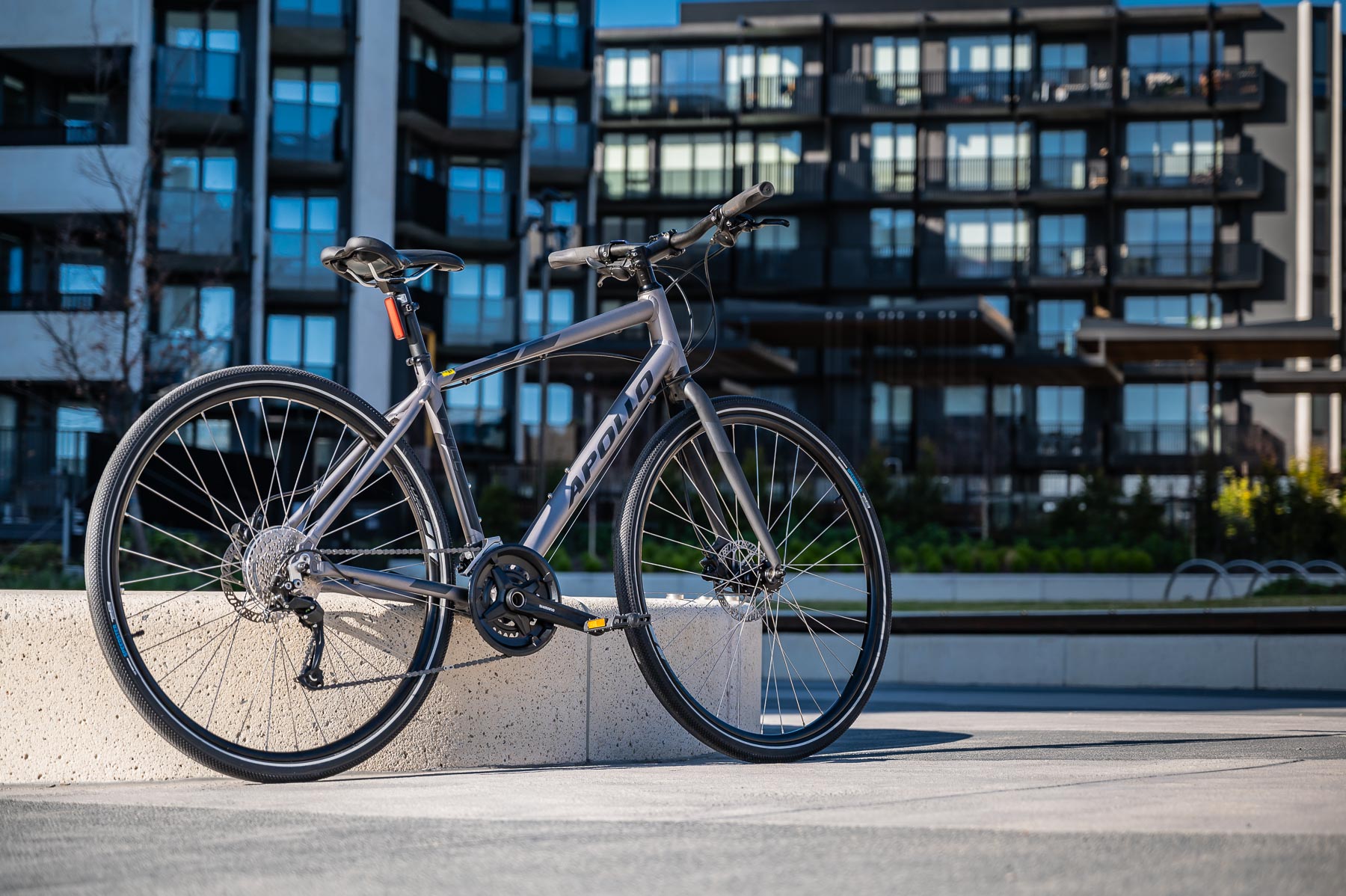

Trace 30

Our Trace series is designed to be the all-rounder commuter bike in our Urban range. Fast, versatile, and comfortable, they’re built to keep you active, and roll quickly through urban environments.

Trace 30 features riser handlebars for a comfortable and upright riding position, wide 700x40c tyres with a semi-slick tread to offer grip and inspire confidence on roads and bike paths.

The hydraulic disc brakes deliver powerful and reliable braking performance in all weather conditions.

Specifications

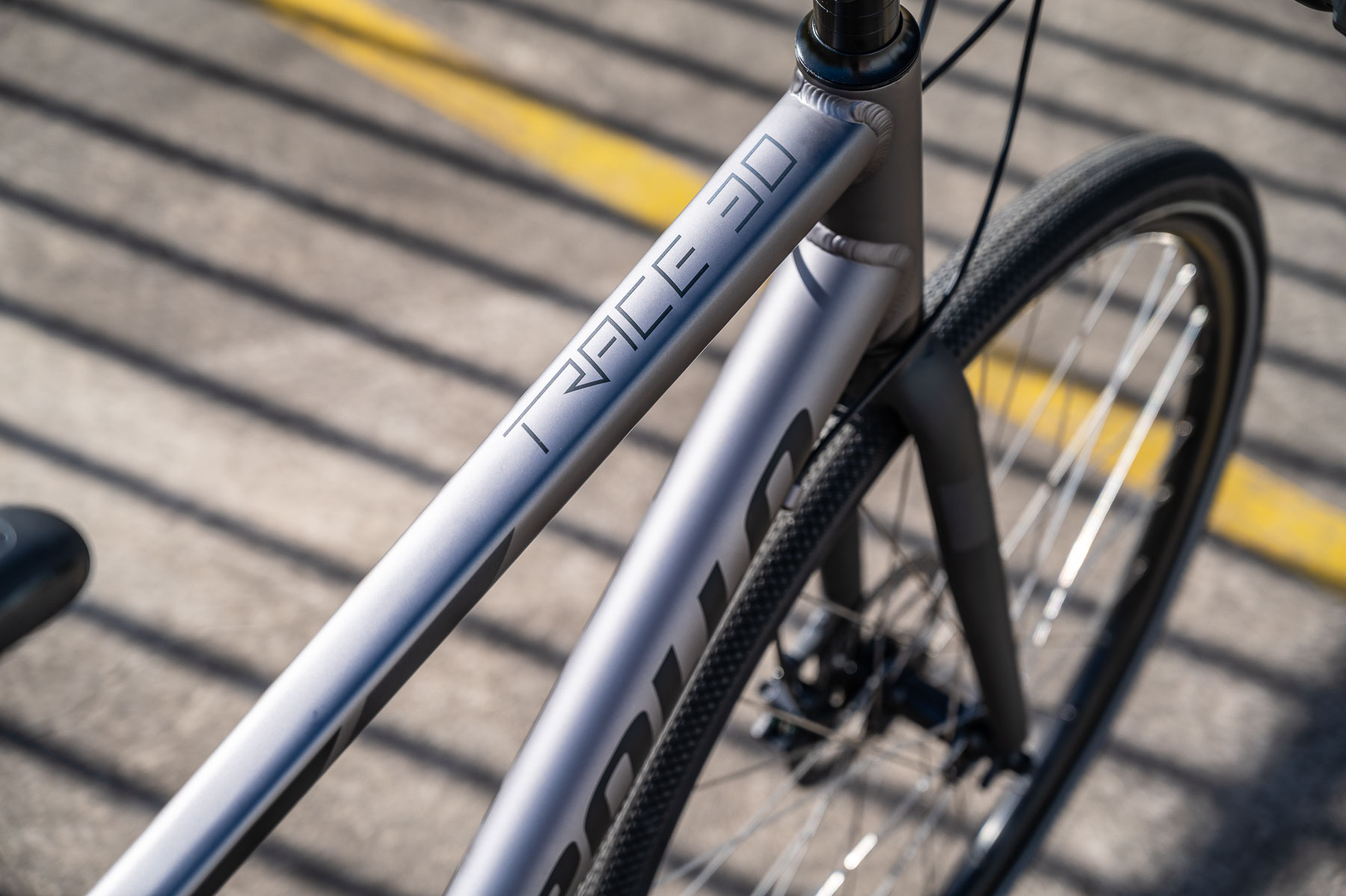

FRAME

Butted 6061 frame with smooth welding. Integrated head tube, pannier mounts and replaceable derailleur hanger

FORK

Alloy 700c disc specific commuter fork with rack and fender mounts

HEADSET

A-head semi integrated 1-1/8" with 10mm cone spacer

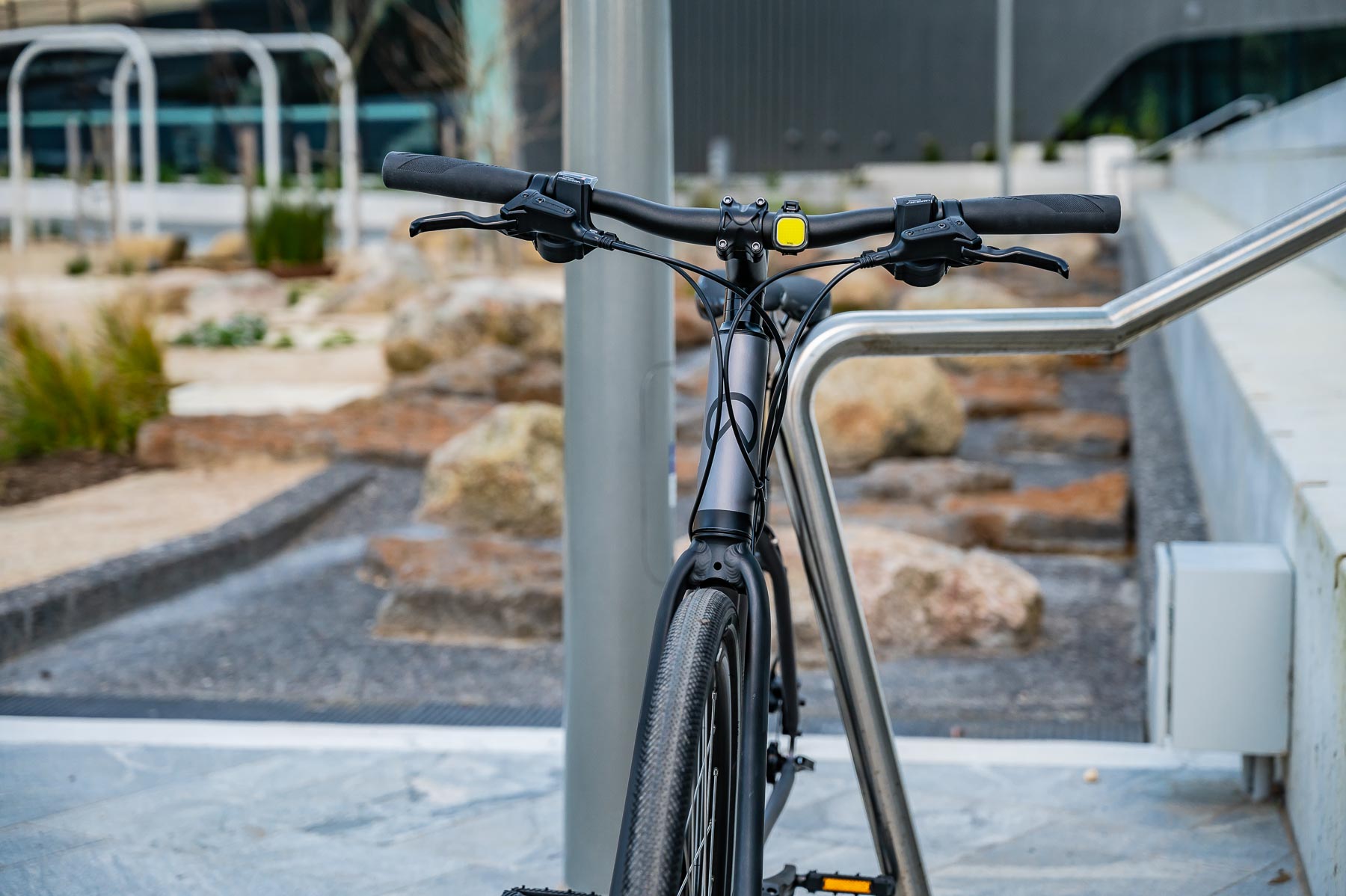

HANDLEBAR

Alloy low riser, bore: 31.8mm, W: 600mm, sweep: 6°

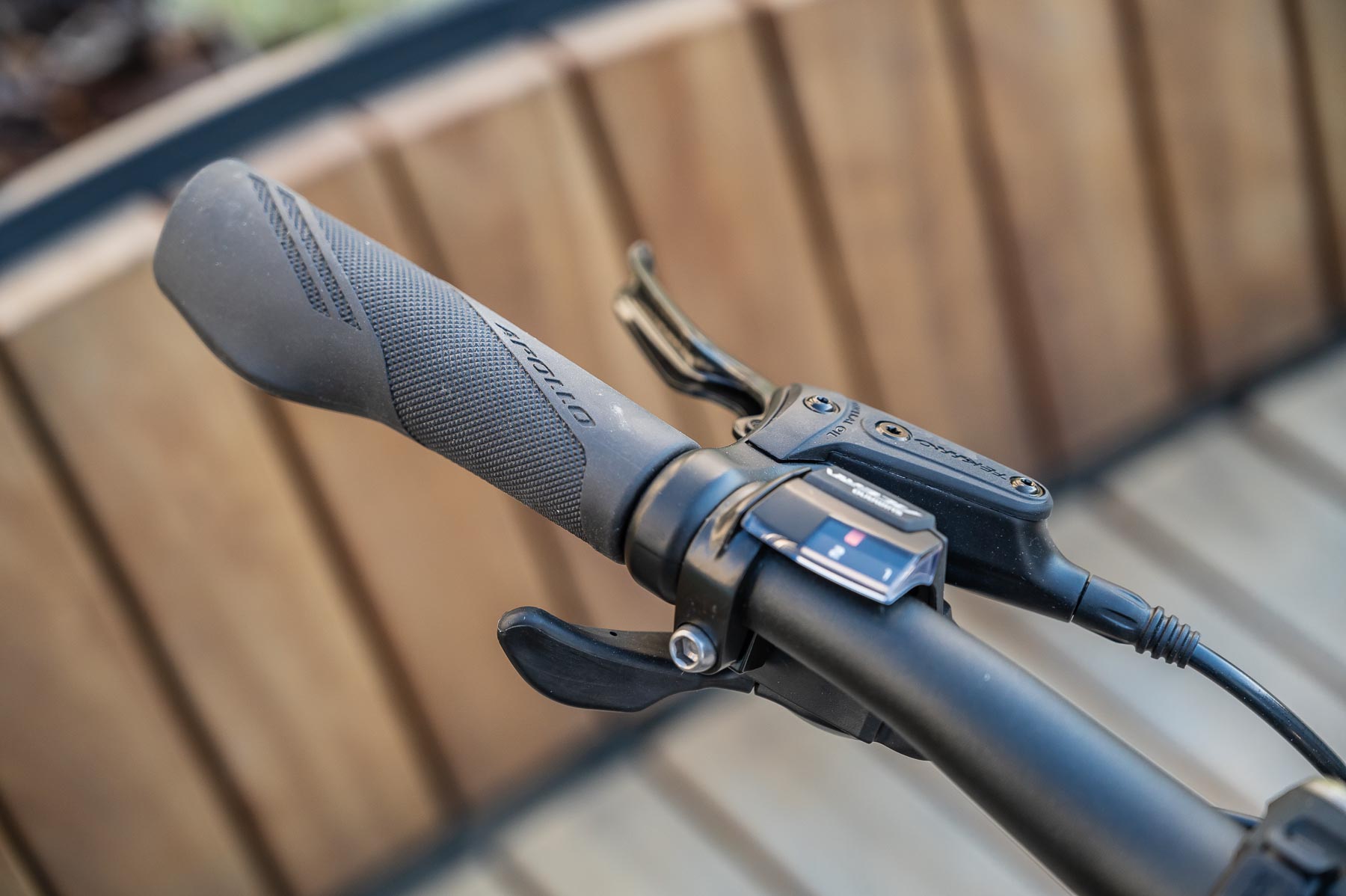

GRIP

Kraton ERGO comfort grip

HEADSTEM

4 bolt alloy stem, 31.8mm, S=75mm, M/L=90mm, XL=105mm

CRANKSET

Shimano FC-T3010 48 x 36 x 26T L: S/M=170mm, L/XL=175mm

BOTTOM BRACKET

Cartridge bottom bracket

PEDALS

Low profile high impact resin

FRONT DERAILLEUR

Shimano FD-T3000

REAR DERAILLEUR

Shimano RD-M3000

SHIFT LEVERS

Shimano SL-M2000 Altus 3 x 9 speed

CASSETTE

Shimano 9 speed cassette 11-32T

CHAIN

KMC Z-9

BRAKES

Tektro HD-T275 hydraulic disc brakes, with 3 finger levers and 160mm rotors

WHEELS

700c Weinmann U-26 double wall disc specific rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes

TYRES

Veetire Speedster 700 x 40c with reflective side walls

SADDLE

Apollo Ergotech dual density saddle

SEATPOST / CLAMP

Alloy twin bolt micro adjust 27.2mm

EXTRAS

N/A

Specifications are subject to change at any time and without notice.

Geometry

S M L XL
Frame Size 15.5" 18" 20" 22"
A – Stack 580 592 608 622
B – Reach 378 400 414 423
C – Stand Over Height 409 441 472 503
D – Effective Top Tube Length 550 575 600 620
E – Seat Tube (Centre to Top) 400 457 508 560
F – Seat Angle 73.5° 73.5° 73° 72.5°
G – Head Tube Length 160 170 185 200
H – Head Angle 71° 71.5° 72° 72°
I – Wheel Base 1046 1066 1077 1094
J – Chain Stay Length 440 440 440 440
K – BB Drop 50 50 50 50
L – Fork Rake 45 45 45 45
M – Axle to Crown 417 417 417 417
Rear Dropout Spacing 135 135 135 135
Approx. Rider Height 158 - 168cm
5'2" - 5'6"		 165 - 173cm
5'5" - 5'8"		 170 - 178cm
5'7" - 5'10"		 175 - 190cm
5'9" - 6'3"
text Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend visiting your local Apollo Dealer. Sizing availability may vary between countries.
Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend visiting your local Apollo Dealer. Sizing availability may vary between countries.
