Trail D 20

Gloss Purple / Black

Specifications

FRAME

27.5" Plus carbon dual suspension frame, UD carbon, 130mm (5") travel. 1-1/8 - 1-1/2" head tube, 12x148mm Boost

FORK

Rockshox 35 Gold RL. Tapered alloy steerer, 140mm travel, Boost, with Maxle Stealth

REAR SHOCK

Rockshox Monarch R

HEADSET

A-head semi integrated, for tapered 1-1/8 - 1-1/2" head tube, cartridge bearings

HANDLEBAR

Apollo alloy riser bar 31.8mm W: 740mm, sweep: 5°

GRIP

Lock-on grips, Kraton rubber

HEADSTEM

Apollo 3D forged stem, 31.8mm 4 bolt stem, Ext: S/M/L=45mm

CRANKSET

SRAM SX Eagle 32T L: S=170mm, M/L=175mm

BOTTOM BRACKET

SRAM Powerspline

PEDALS

Low profile high impact resin

FRONT DERAILLEUR

Nil

REAR DERAILLEUR

SRAM SX Eagle

SHIFT LEVERS

SRAM SX Eagle trigger 12 speed

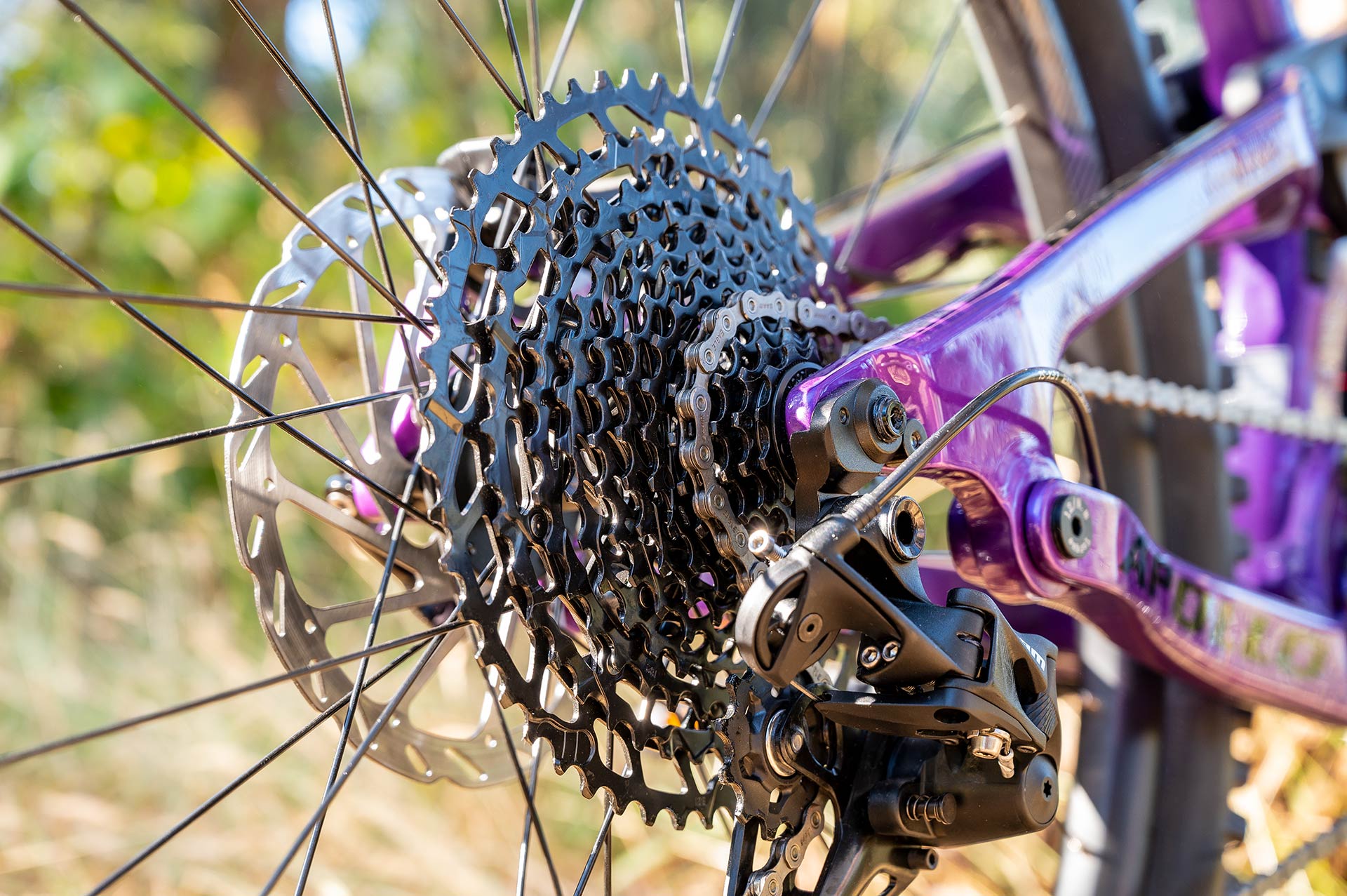

CASSETTE

SRAM PG-1210, 11-50T

CHAIN

SRAM Eagle 12 speed

BRAKES

SRAM Level hydraulic disc brakes, F:180mm / R:160mm rotors

WHEELS

27.5" Weinmann U-32 alloy 32 hole F/V double wall disc specific rims, 12 x 148mm rear hub and 15mmx110mm Thru Axle front hub

TYRES

Veetire Flow Snap. 27.5 x 2.6, wire bead

SADDLE

Apollo MTB sport saddle

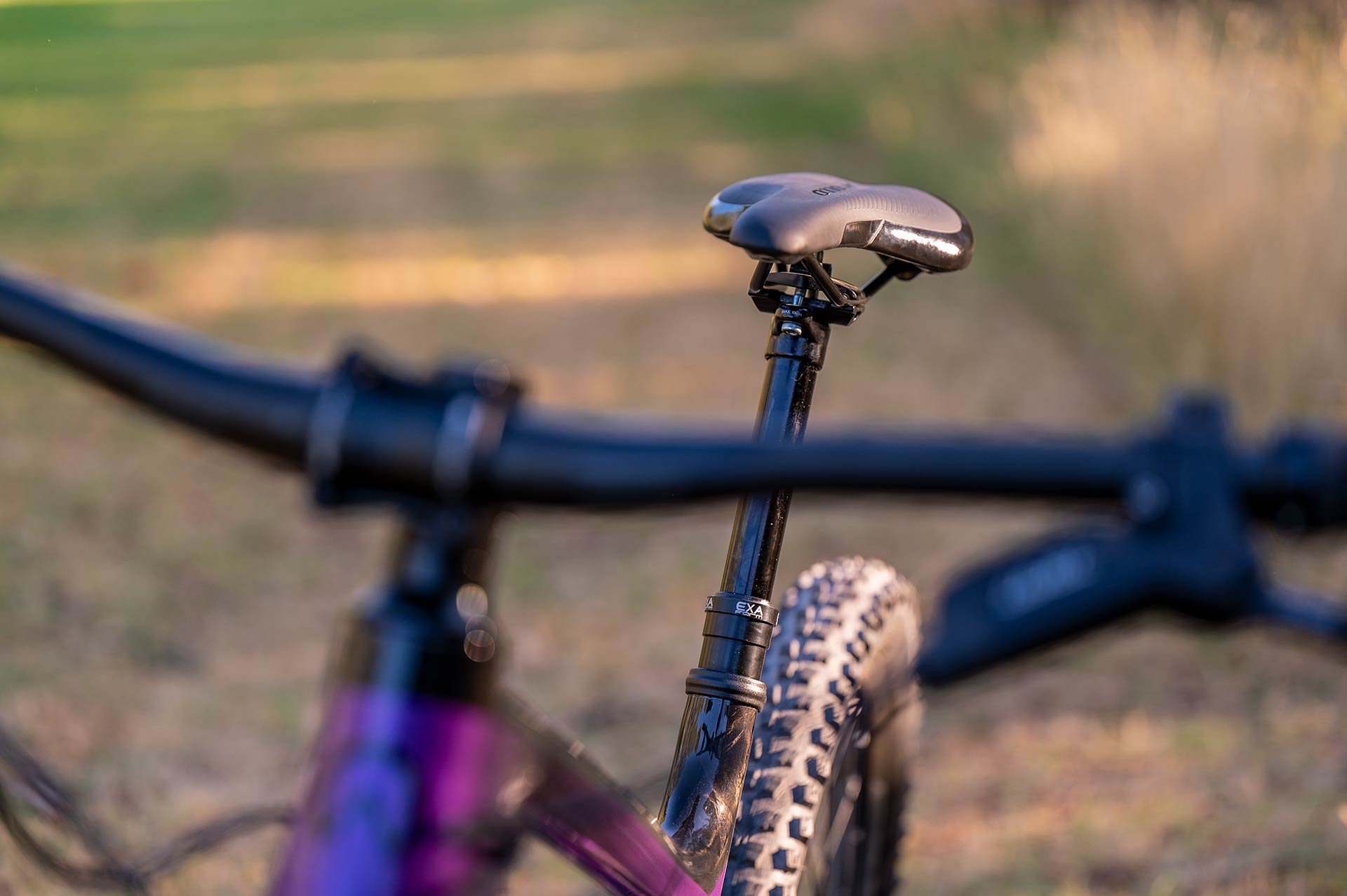

SEATPOST / CLAMP

KS E30i 125mm travel dropper post 31.6mm

EXTRAS

N/A

Specifications are subject to change at any time and without notice.

Geometry

Frame Size
17"
A – Stack
613
B – Reach
440
C – Stand Over Height
n/a
D – Effective Top Tube Length
616
E – Seat Tube (Centre to Top)
430
F – Seat Angle
74°
G – Head Tube Length
105
H – Head Angle
68.5°
I – Wheel Base
1170
J – Chain Stay Length
443
K – BB Drop
24
L – Fork Rake
51
M – Axle to Crown
551
Rear Dropout Spacing
148
Approx. Rider Height
160 - 168cm
5'3" - 5'6"
Frame Size
19.5"
A – Stack
623
B – Reach
456
C – Stand Over Height
n/a
D – Effective Top Tube Length
635
E – Seat Tube (Centre to Top)
489
F – Seat Angle
74°
G – Head Tube Length
115
H – Head Angle
68.5°
I – Wheel Base
1189
J – Chain Stay Length
443
K – BB Drop
24
L – Fork Rake
51
M – Axle to Crown
551
Rear Dropout Spacing
148
Approx. Rider Height
170 - 178cm
5'7" - 5'10"
Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend visiting your local Apollo Dealer. Sizing availability may vary between countries.
