Specifications
FRAME
Superlite butted 6061 alloy gravel road, integrated head tube and replaceable derailleur hanger
FORK
Full carbon straight blade flat mount disc fork with tapered 1-1/8 to 1-1/2" carbon steerer, 12mm Thru Axle
HEADSET
A-head integrated 1-1/2 to 1-1/8" bearings with 15mm cone spacer
HANDLEBAR
Apollo butted alloy anatomic flared drop 31.8mm alloy W: M=44cm, L/XL=46cm
GRIP
Soft PU wrap with gel
HEADSTEM
Apollo 1-1/8" 3D forged alloy 4 bolt stem. M/L=110mm, XL=120mm
CRANKSET
Shimano FC-RX600, GRX, 40T 2 piece crank, M=172.5mm, L/XL=175mm
BOTTOM BRACKET
BSA Threaded
PEDALS
Nil
FRONT DERAILLEUR
Nil

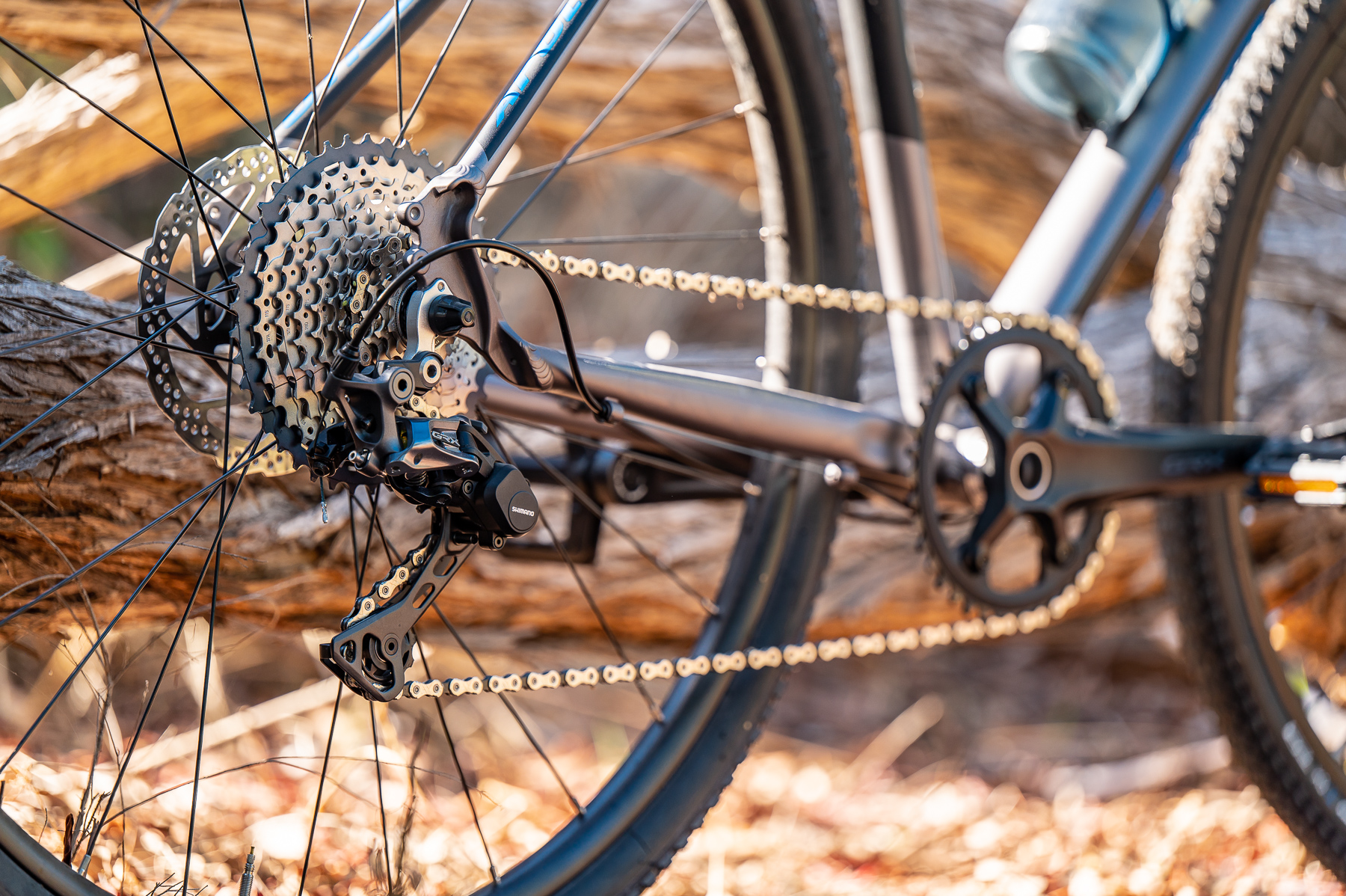

REAR DERAILLEUR
Shimano RD-RX812
SHIFT LEVERS
Shimano ST-RX600 11 speed shifters
CASSETTE
Shimano CS-M7000, 11-42T
CHAIN
KMC X-11
BRAKES
Shimano ST-RX600 GRX hydraulic road disc brakes with 160mm rotors
WHEELS
700c Weinmann U-26 double wall disc specific rims, 32 hole 10 speed disc hubs with stainless spokes
TYRES
Veetire T-CX 700c x 40c, 27TPI, folding bead MPC - Multiple Purpose Compound
SADDLE
Apollo road saddle
SEATPOST / CLAMP
Apollo alloy 27.2mm post, twin bolt with alloy seat clamp
Specifications are subject to change at any time and without notice.
Geometry
M | L | XL | |
---|---|---|---|
A – Stack | 576 | 602 | 647 |
B – Reach | 379 | 386 | 392 |
C – Stand Over Height | 444 | 472 | 508 |
D – Effective Top Tube Length | 550 | 570 | 590 |
E – Seat Tube (Centre to Top) | 500 | 530 | 560 |
F – Seat Angle | 73.5° | 73° | 73° |
G – Head Tube Length | 160 | 185 | 230 |
H – Head Angle | 72.5° | 73° | 73.5° |
I – Wheel Base | 1023 | 1033 | 1053 |
J – Chain Stay Length | 435 | 435 | 435 |
K – BB Drop | 65 | 65 | 65 |
L – Fork Rake | 50 | 50 | 50 |
M – Axle to Crown | 395 | 395 | 395 |
Rear Dropout Spacing | 135 | 135 | 135 |
Approx. Rider Height | 170 - 178cm 5'7" - 5'10" |
178 - 185cm 5'10" - 6'1" |
185 - 193cm 6'1" - 6'4" |
text | Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend visiting your local Apollo Dealer. Sizing availability may vary between countries. |
